RM283.00
Note:
Minimum purchase quantity for this product is 2 units
Store Address:
Lot 27, 3rd Floor, Jalan SBC 5, Off Jalan Batu Caves, Taman Sri Batu Caves, Selangor, 68100 Batu Caves.
Phone: +(60) 3 6184 2650
Opening Hours:
Monday: 09:00 am - 06:00 pm
Tuesday: 09:00 am - 06:00 pm
Wednesday: 09:00 am - 06:00 pm
Thursday: 09:00 am - 06:00 pm
Friday: 09:00 am - 06:00 pm
Saturday: Closed
Sunday: Closed
1 - 5 Working Days
1 - 2 Working Days

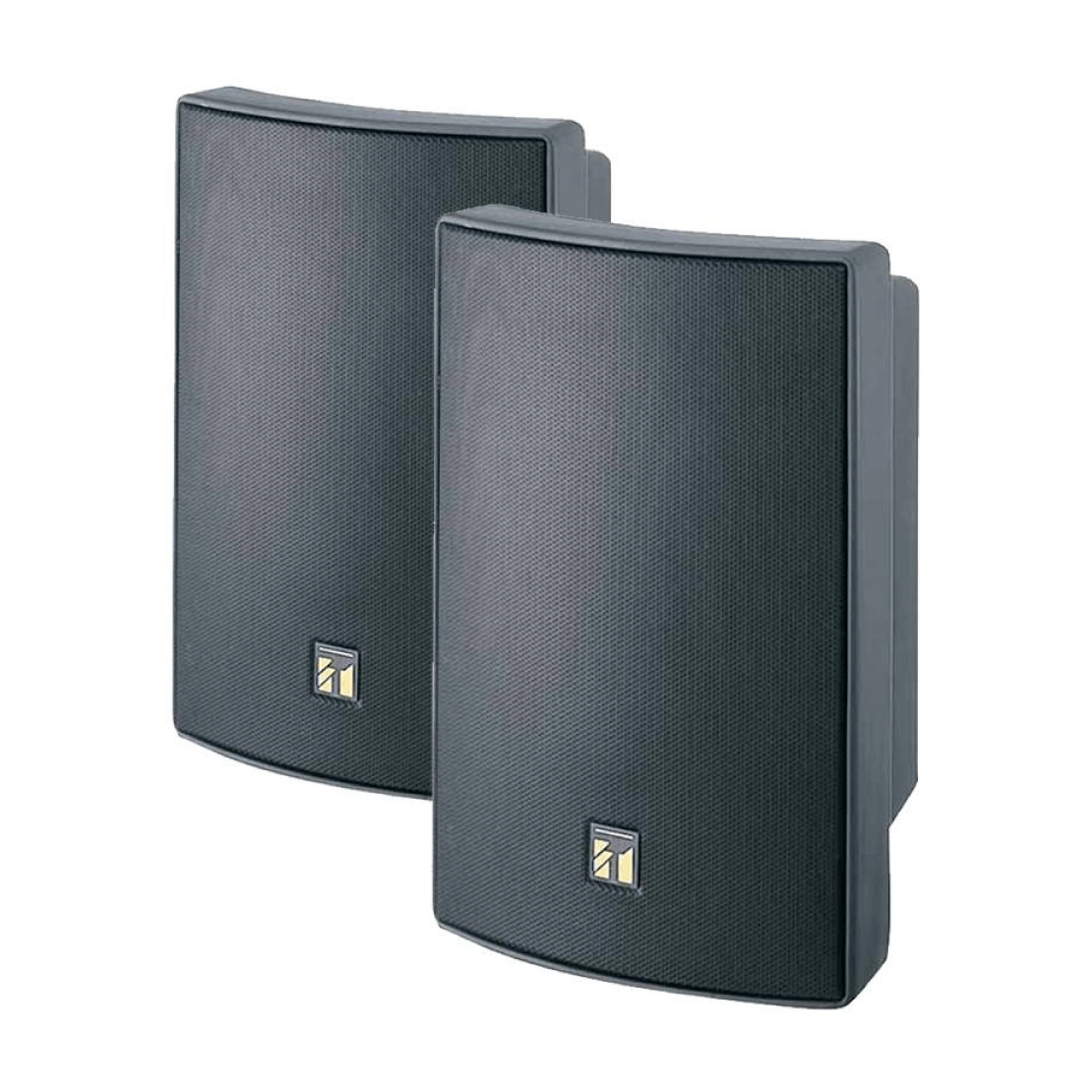

The BS-1030B is a small, 2-way bass-reflex type speaker featuring a wide
frequency range suitable for use for announcements and music playback. The
BS-1030B can be used for both high-impedance and low-impedance applications. The
speaker’s splash-proof construction permits it to be installed under the eaves
where the speaker is not directly exposed to rain.
| Feature | Details |
|---|---|
| Rated Input | 30 W |
| Rated Impedance | 8 Ω 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) |
| Sound Pressure Level | 90 dB (1 W, 1 m) |
| Frequency Response | 80 Hz – 20 kHz |
| Speaker Component | 12 cm cone-type + dome-type |
| Speaker Cord | 2-core cabtyre cord witd diameter of 6 mm |
| Operating Temperature | -10 ℃ to +50 ℃ |
| Water Protection | IPX4 (can be installed vertically or horizontally.*) |
| Finish | Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK, powder coating |
| Dimension | 196 (W) × 290 (H) × 150 (D) mm (unit only) |
| Weight | 2.5 kg (unit only) |
| Accessory | Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2 |
| Option | Applicable bracket: WCB-13B, SP-410 Applicable stand: ST-16A |
