Intel i7 14th Gen – HASBPRO Mini PC OPS (16GB RAM, 512GB SSD, 4K Resolution)

Intel i7 14th Gen - HASBPRO Mini PC OPS (16GB RAM, 512GB SSD, 4K Resolution)
Intel i7 14th Gen - HASBPRO Mini PC OPS (16GB RAM, 512GB SSD, 4K Resolution) - Image 2
Intel i7 14th Gen - HASBPRO Mini PC OPS (16GB RAM, 512GB SSD, 4K Resolution) - Image 3
Intel i7 14th Gen - HASBPRO Mini PC OPS (16GB RAM, 512GB SSD, 4K Resolution) - Image 4

RM2,553.00

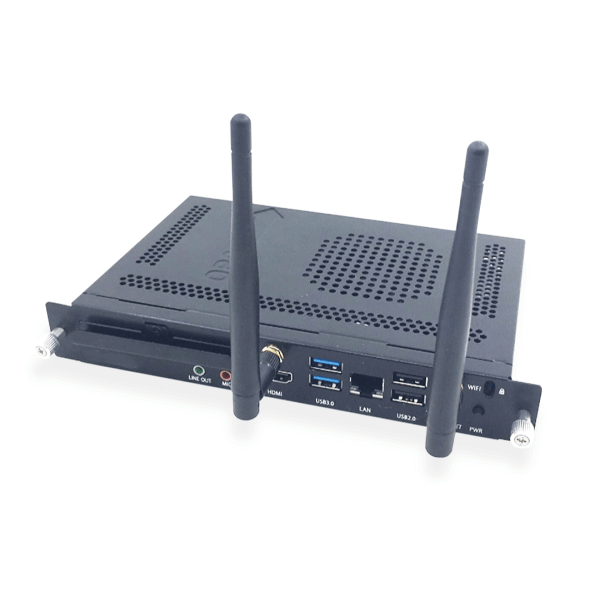

HASB Pro HP100 OPS Mini PC modules provide a hassle-free Windows® 11 Pro
solution based on the latest 14th generation Intel® Core™ processors, and are designed specifically to work with Javiya Interactive Touch Panel

Features:

  • Intel i7 14th Gen
  • 16GB RAM, 512GB SSD
  • Intel®OPS Standard Module
  • Intel Sky Lake-U & Kabylake-U
  • Pin to Pin Design
  • Dual Channel DDR4 Memory
  • JAE 80-pin connection
  • Support M.2 WIFI/BT Module
  • Support M.2 SSD Module
  • Optional Intel vPro/AMT Technology
  • Optional TPM2.0
  • Optional 4K/30Hz & 4K/60Hz

CERTIFICATIONS & APPROVALS



Courier Delivery


1 - 5 Working Days

Self Collection at Store


1 - 2 Working Days

Provide a hassle-free Windows® 11 Pro

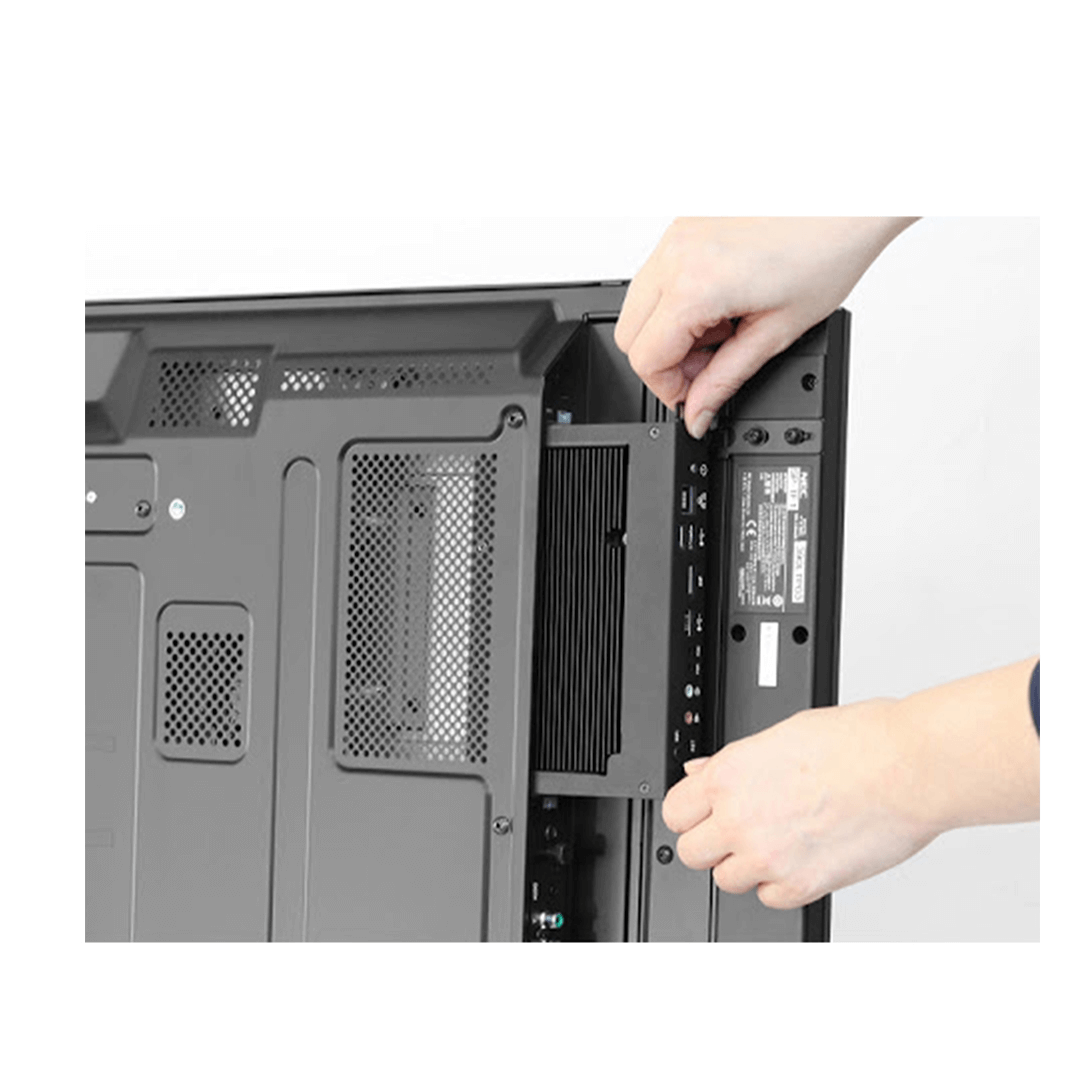

HASBpro Open Pluggable Specification (OPS) PC modules provide a hassle-free Windows® 11 Pro solution based on the latest 14th generation Intel® Core™ processors, and are designed specifically to work with Newline interactive displays. Install the OPS PC module in a Newline interactive display’s OPS slot to provide a complete 4K UHD Windows 11 solution at your fingertips, without the need for an external device or additional cables..

Powerful Processor with integrated Intel HD Graphics Chipset

Eco-friendly with low consumption, bringing better performance.

Specification

Processor Intel® i7 (13th Generation)
Memory 16GB RAM (Upgradeable to 32GB), Dual Channel DDR4 2133MHz
4GB up to 32GB max.
Storage 512GB SSD (M.2 2242) + 2.5” SATA HDD/SSD slot for expansion
1 x M.2 2242 SSD (4G Module Optional)
Graphics Intel® HD Graphics 5series
Wireless 1 x M.2 2230 WIFI/BT Module
Network Intel Gigabit Ethernet
Audio Realtek ALC662 HD Audio IC
2 x USB3.0 Type-A, 2 x USB2.0 Type-A
1 x RJ45 10/100/1000M, 1 x HDMI 1.4 out, Max.4K/24Hz
1 x 3.5mm Line out, 1 x 3.5mm Mic in
2 x WIFI/BT ANT, 1 x IR receiver
1 x Power button, 1 x Power LED
1 x HDD/SSD LED
JAE 80-pin 1 x HDMI 1.4 out, 4K/24Hz
(HDMI2.0 Optional), 3 x USB2.0/3.0, TTL
Power input 12-19v DC IN
TPM TPM2.0 firmware (Optional)
vPro Optional support
AMT Optional Support
Watchdog Support
Material Metal
Dimensions OPS Standard：119 (L) x 180 (W) x 30 (H) mm
Temperature Operation -5 ℃ ~ 45 ℃
Storage -20 ℃ ~ 70 ℃
Relative humidity 10% ~ 95% (non-condensing）
Net Weight 0.9kg
Sirim Certification Yes
MCMC Certification Yes
