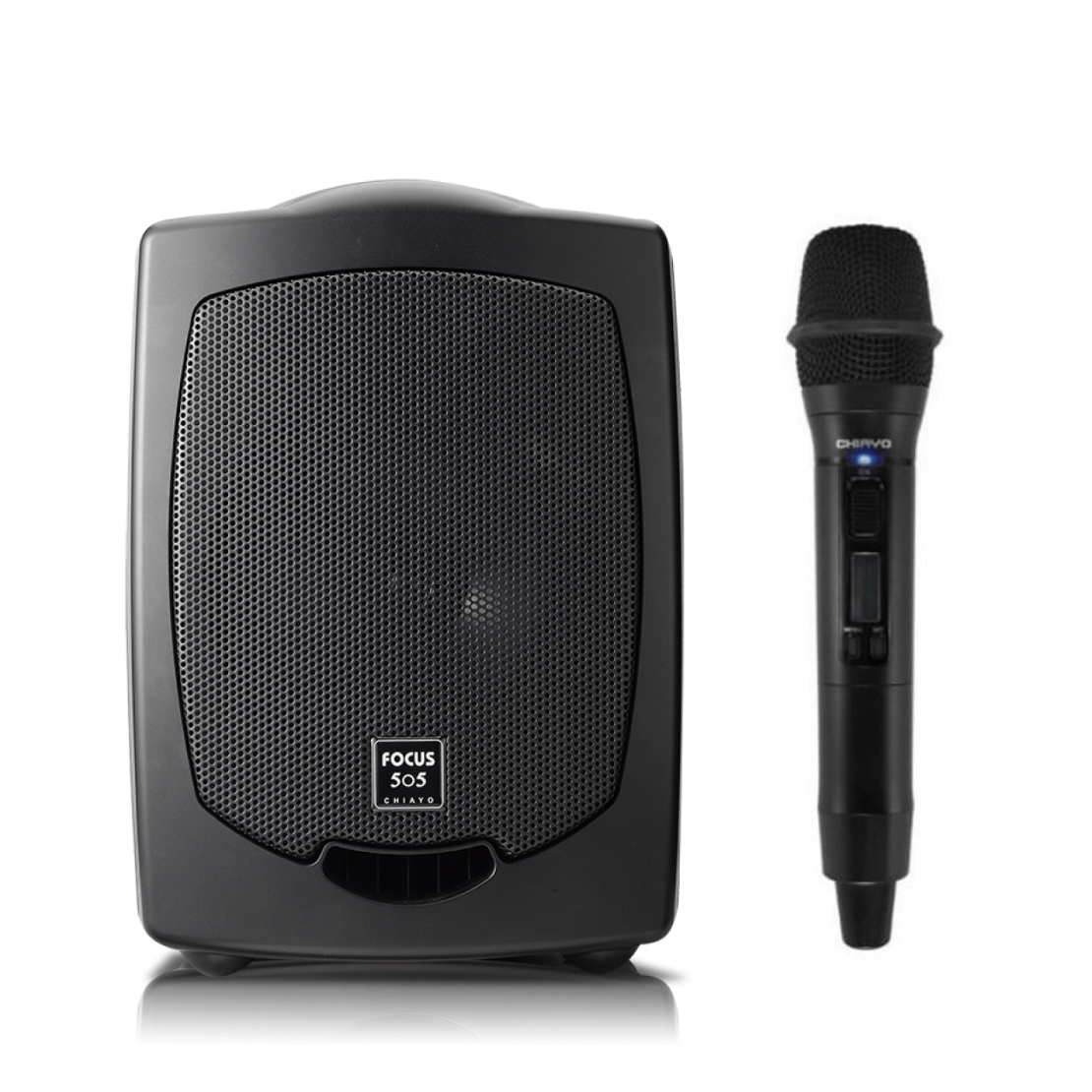

Chiayo Focus 505 50W Professional Digital Portable PA System


Chiayo Focus 505 50W Professional Digital Portable PA System<br><br><br>

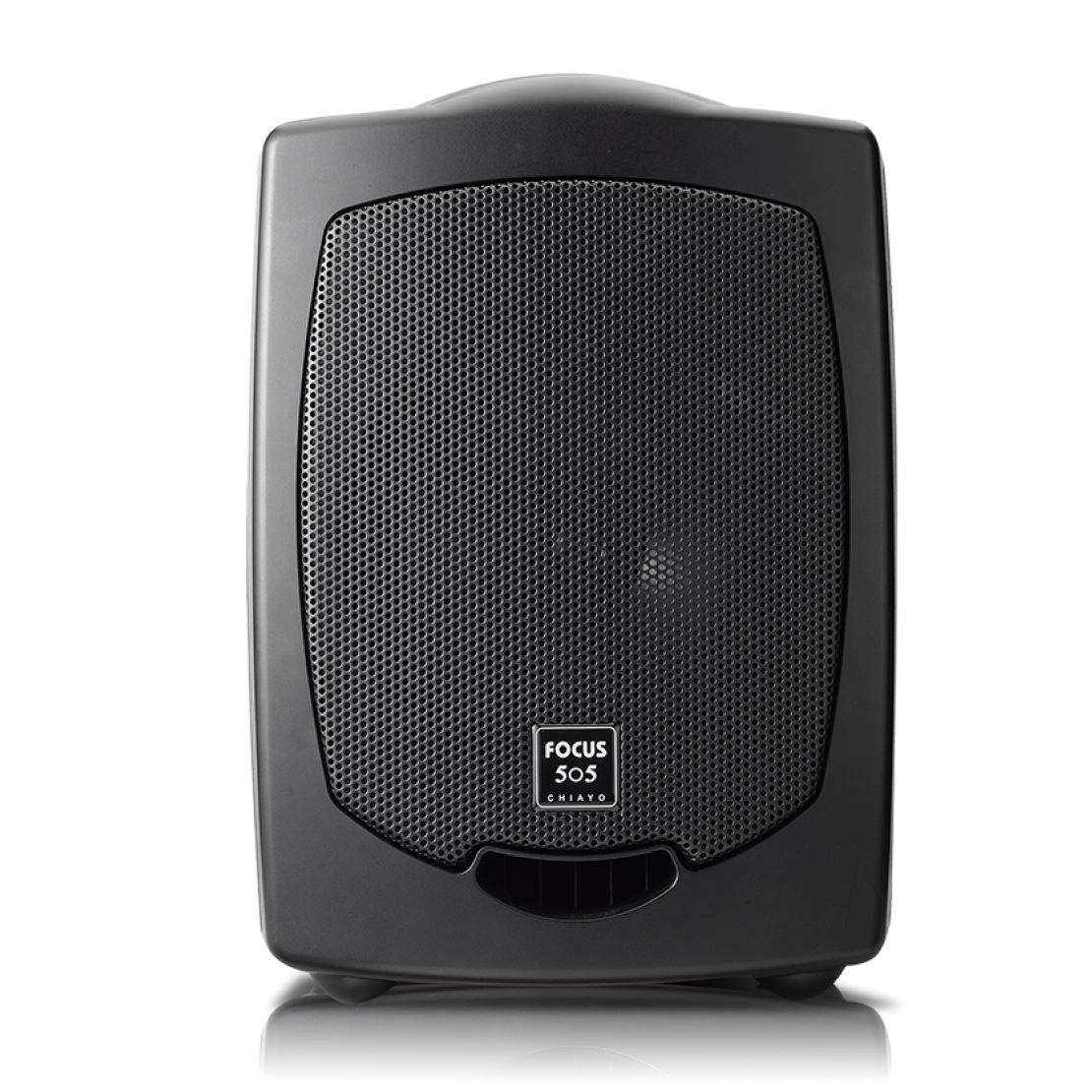

Chiayo Focus 505 50W Professional Digital Portable PA System<br><br><br> - Image 2

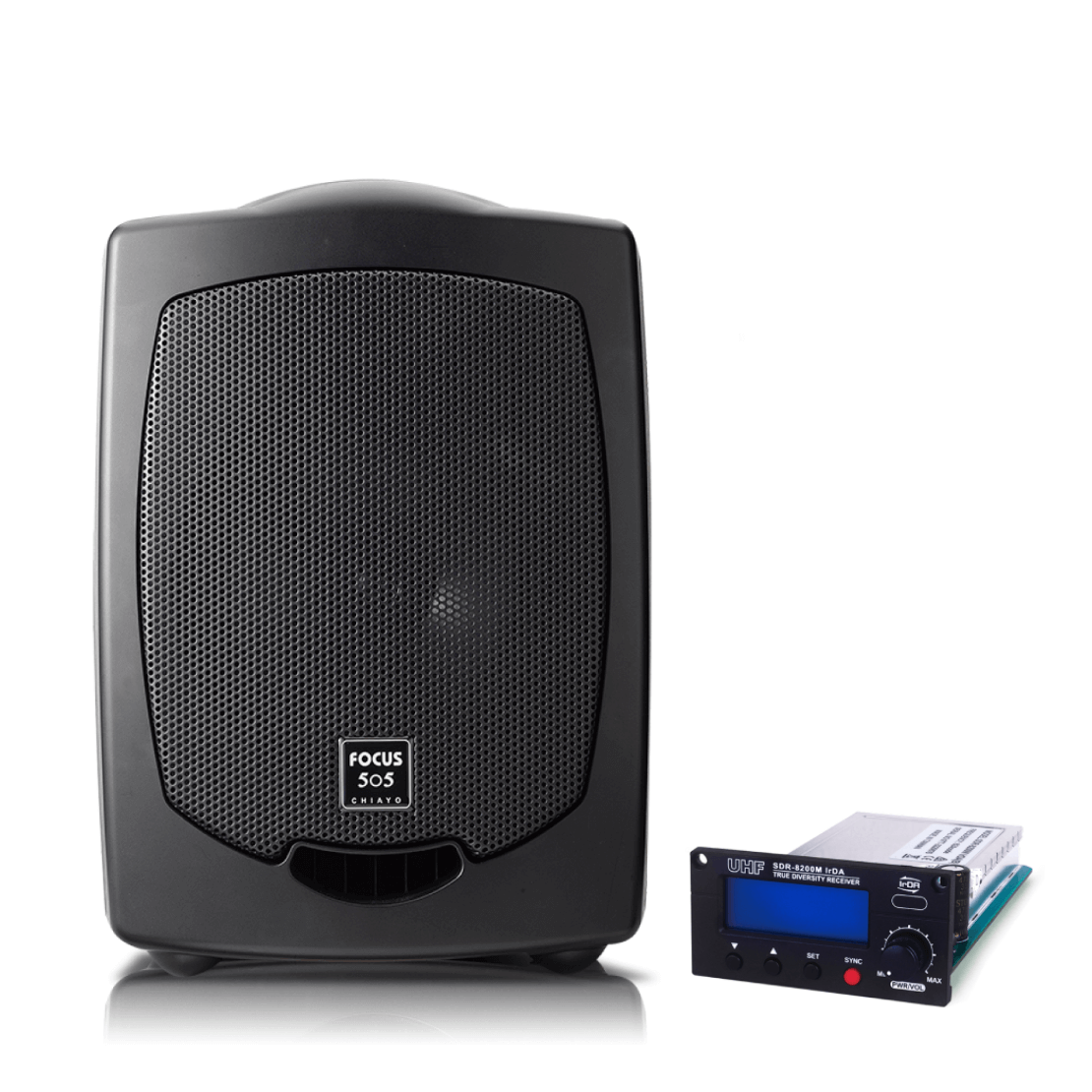

Chiayo Focus 505 50W Professional Digital Portable PA System<br><br><br> - Image 3

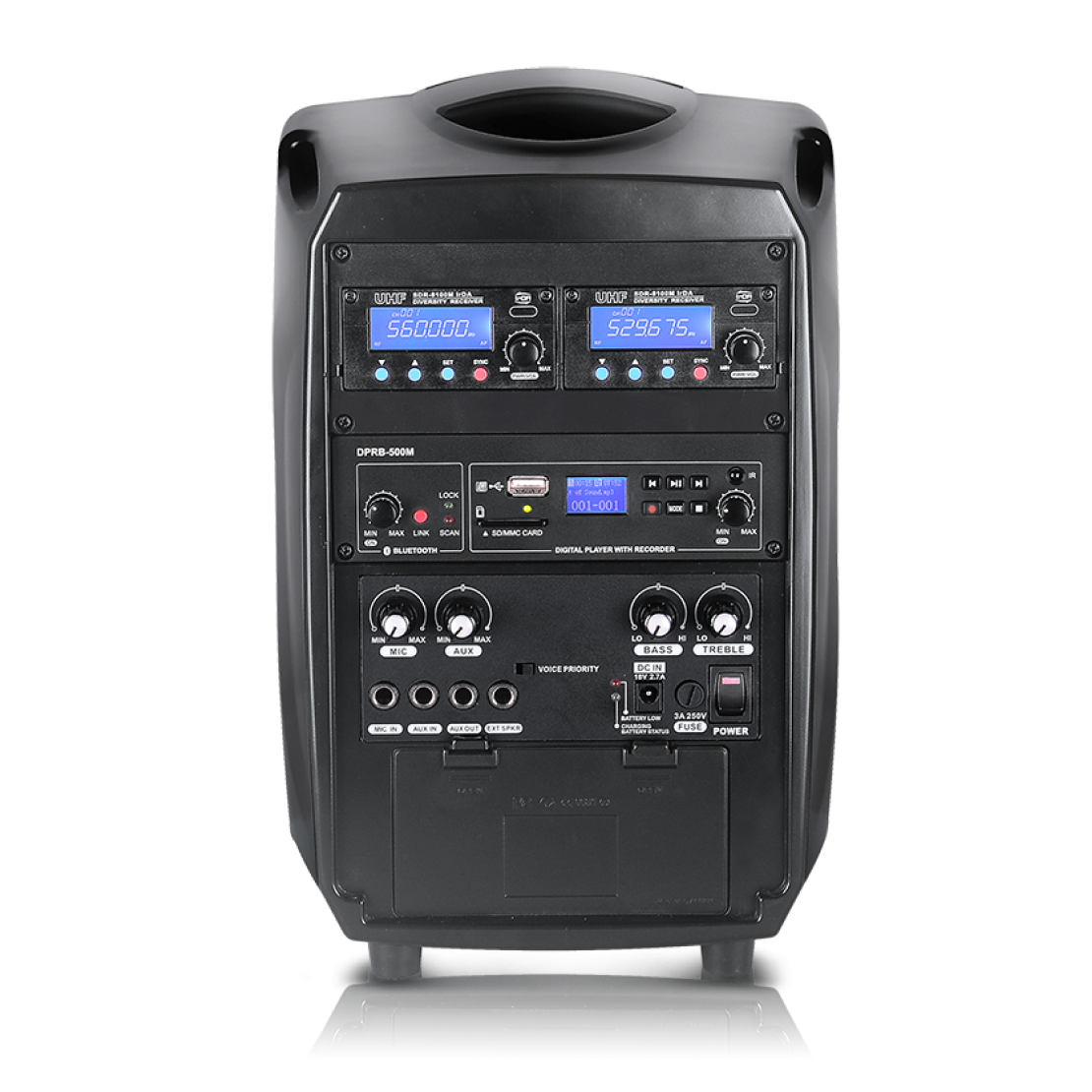

Chiayo Focus 505 50W Professional Digital Portable PA System<br><br><br> - Image 4
Chiayo Focus 505 50W Professional Digital Portable PA System<br><br><br> - Image 5

RM1,984.00






Compact Portable PA System

The Focus 505 is a portable, cordless amplifier about the size of an A4 paper. It’s easy to carry, delivers clear sound, and runs over 12 hours on a rechargeable battery. Comes with treble and bass controls for better sound adjustment.

  • 30W RMS output, max 50W music output
  • 6 1/2” full-range speaker system.
  • MP3/USB/SD/Bluetooth player with LCD track display.
  • Voice Priority Function auto ducks music during speech.
  • Compander circuit improves signal to noise ratio and low background noise.
  • 2-band equalizer (BASS / TREBLE) for all audio inputs.
  • Wired MIC – IN with dedicated volume control.
  • AUX IN for multimedia input with dedicated volume control.
  • AC/DC operation.
  • Rechargeable battery up to 12 hours per usage.
  • Connect up to 2 cordless mic at the the same time (optional).
  • Tripod and wall mount available (optional).

Standard accessories:

  • Handheld cordless microphone SQ-5100 x 1 unit
  • Receiver module SDR-8200M x 1 unit
  • Rechargeable battery x 1 unit
  • Power adapter x 1 unit
  • Remote control x 1 unit
  • Carrying bag SB-21 x 1 unit
Courier Delivery


1 - 5 Working Days

Self Collection at Store


1 - 2 Working Days

Focus 505 - 50W max

Small but powerful

Built-in 50W class-D power amplifier drives 6.5” full range speaker and easily satisfies the amplification requirement of medium-small events with a 100 crowd.

Multiple musical sensations

Volume, treble and bass equalizers to music and voice, adding a variety of sound controls based on user’s need.

Focus 505 - 50W max

Focus 505 - 50W max

Flexible customization

The multimedia functions are flexibly expandable based on the requirement of various applications, such as the receiver module of cordless microphone, MP3 recorder player, Bluetooth receiver and interlinking transmitter module.

Long battery duration

More than 12 hours of operation per lead-acid battery charge. Battery compartment design makes battery replacement much easier.

Focus 505 - 50W max

Focus 505 - 50W max

Application

Crystal clear sound for small indoor venue activity. The truly compact and lightweight design for portability. Ideal for meeting rooms, events, house of worship, schools, retail outlets, gyms and other leisure activity.

Specification

Model FOCUS 505
Max power output 50W, 4Ω Load (class-D)
Speaker system 6 ½” full range
Frequency response 50Hz-20KHz±3dB
T.H.D. < 0.5%
Audio input MIC in (Ø6.3mm),
AUX in (Ø6.3mm)
Audio output AUX out (Ø6.3mm)
External speaker 4~8Ω (Ø6.3mm)
Power supply 100-240V AC, 15V DC / 3.75A
Battery Lead-acid (12V / 2.9Ah) x1
Operating time 5-6 hours in music, 10-12 hours in speech
Charging time about 4 hours
Dimensions (mm) 220 x 215 x 313
Weight (kg) 4.8

Downloads

User Manual – Focus 505

Chiayo Focus 505

Portable Digital Sound System

Videos Gallery

Chiayo Focus 505

Optional Accessories
