RM453.00

Conference System

The GM-243S is a meticulously designed unit for the open network gooseneck conference microphone system, tailored for various meeting scenarios requiring high-quality audio transmission.

  • Telescopic, adjustable gooseneck.
  • LED indicators on both the mic and button.
  • Auto shut-off after 5 minutes of inactivity.
  • Uses standard CAT.5e/CAT.6 cable for power and audio.
  • Lockable RJ45 jack to prevent loose or tampered cables.
  • Supports up to 120 microphones with two GMC-60 converters.
  • GM-243 units and power supply can be placed anywhere in the loop using GMC-10+ converter.
  • Only one power supply and audio converter needed for the whole system.
  • Suitable for small to medium offices, companies, and school conference rooms.

Courier Delivery


1 - 5 Working Days

Self Collection at Store


1 - 2 Working Days

GM-243S

High Expandability and Flexibility

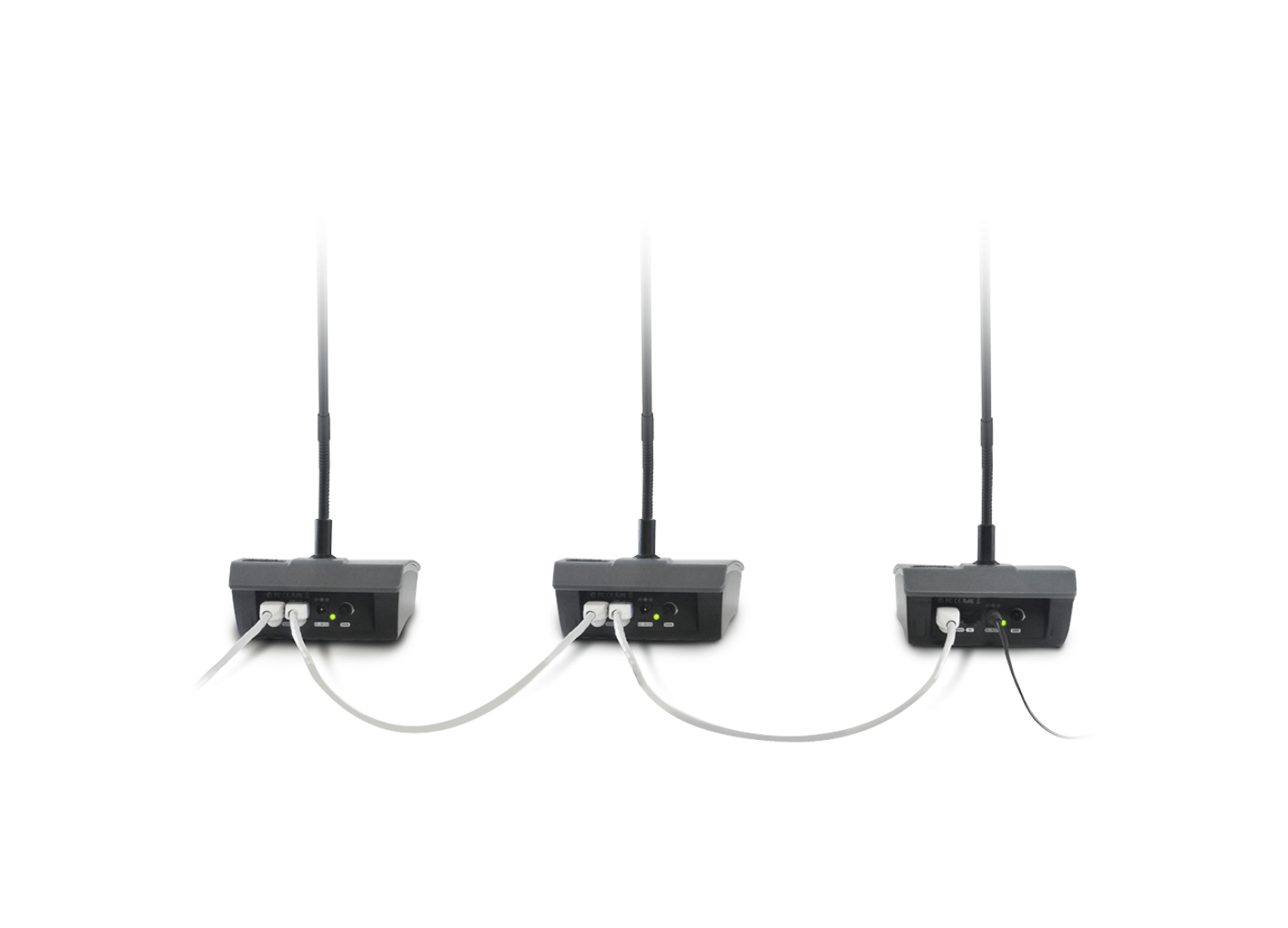

The GM-243S supports daisy-chaining of up to 120 microphones and can be used with the GMC-60 audio adapter box, ensuring stable audio transmission even in large-scale conferences.

Standard Network Cable Connection

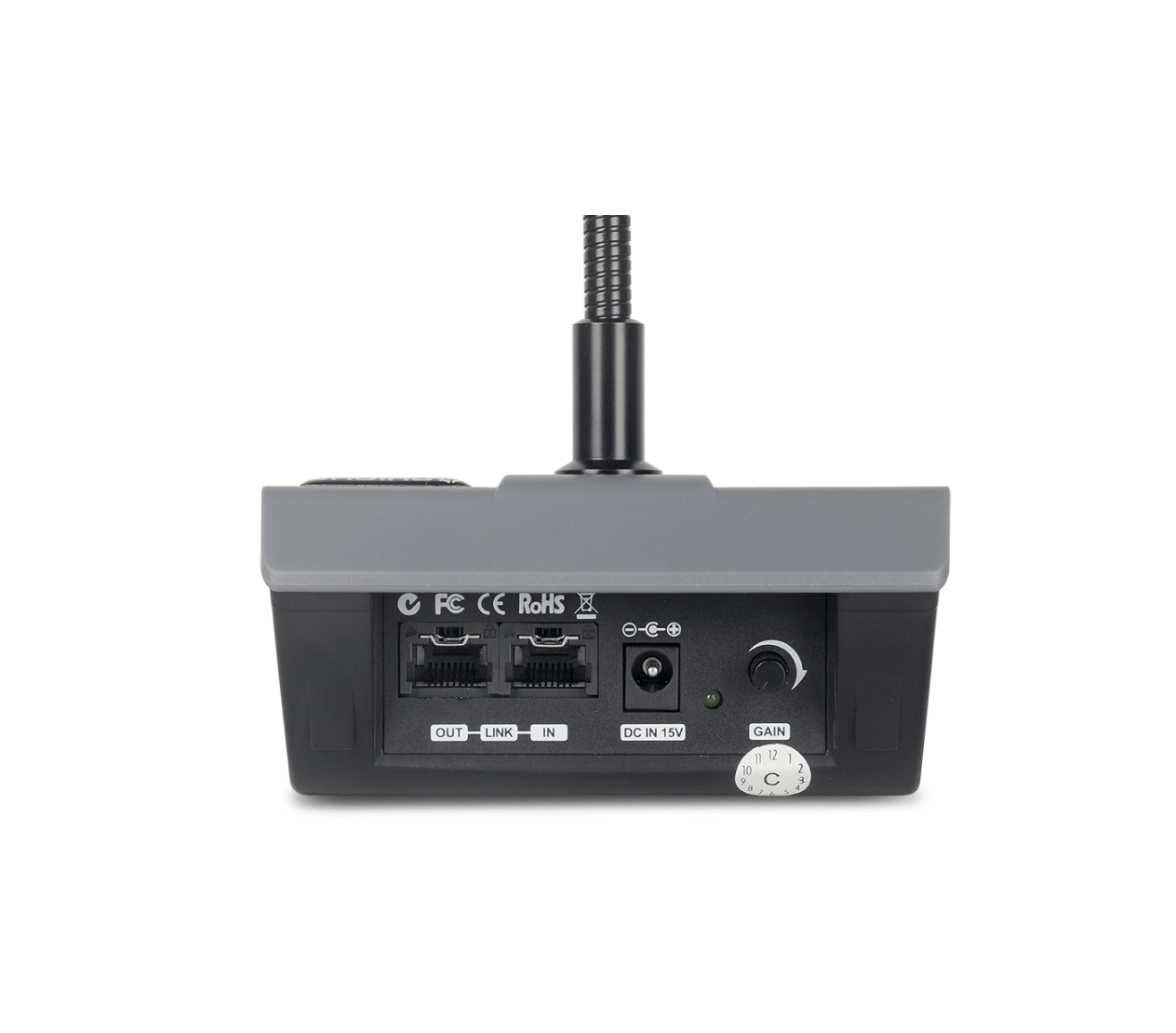

This system uses standard CAT.5e/CAT.6 network cables for audio and power connections, featuring easy installation and maintenance.

GM-243S

GM-243S

Convenient Operation and Control

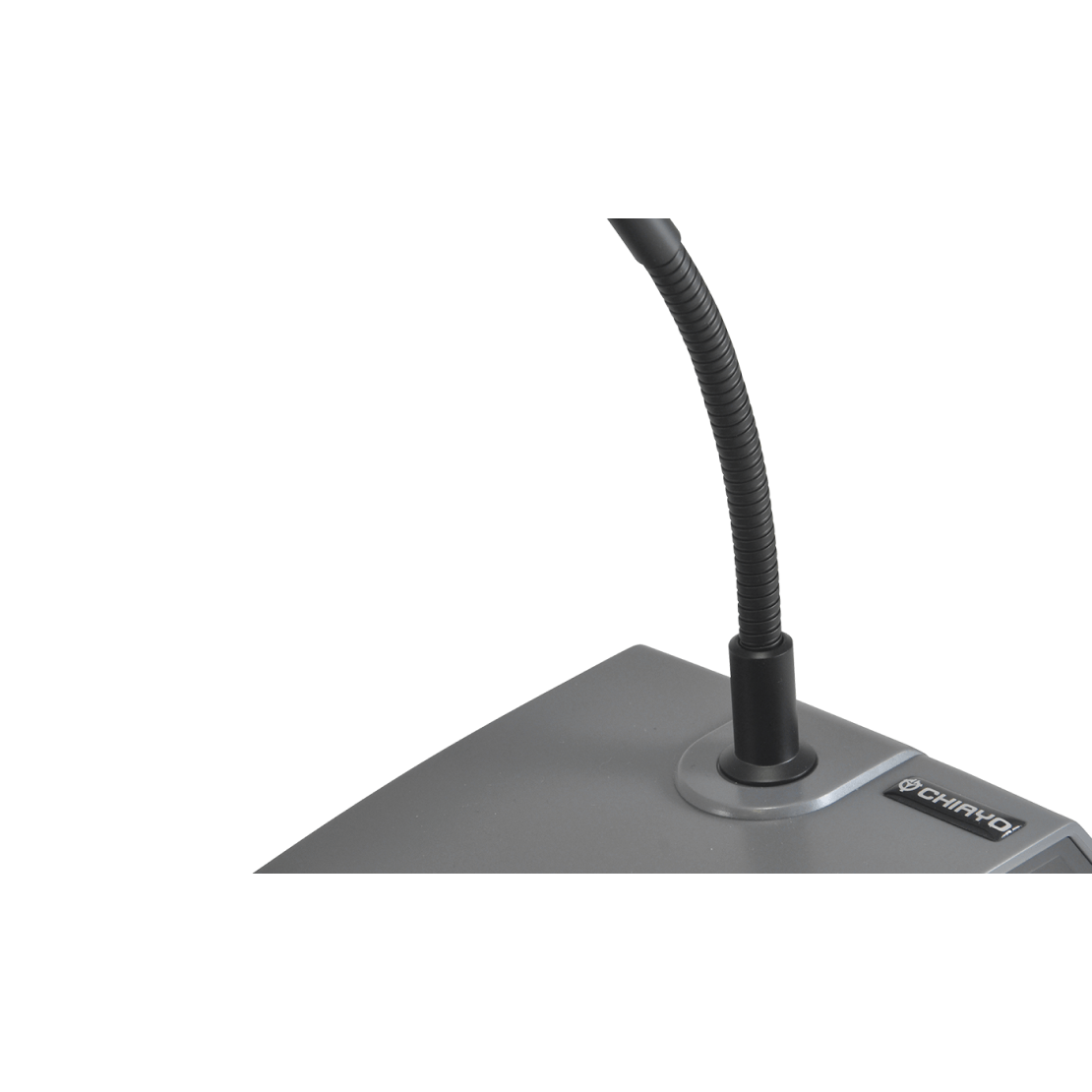

The GM-243S is equipped with a retractable gooseneck microphone that can be adjusted for optimal pickup.

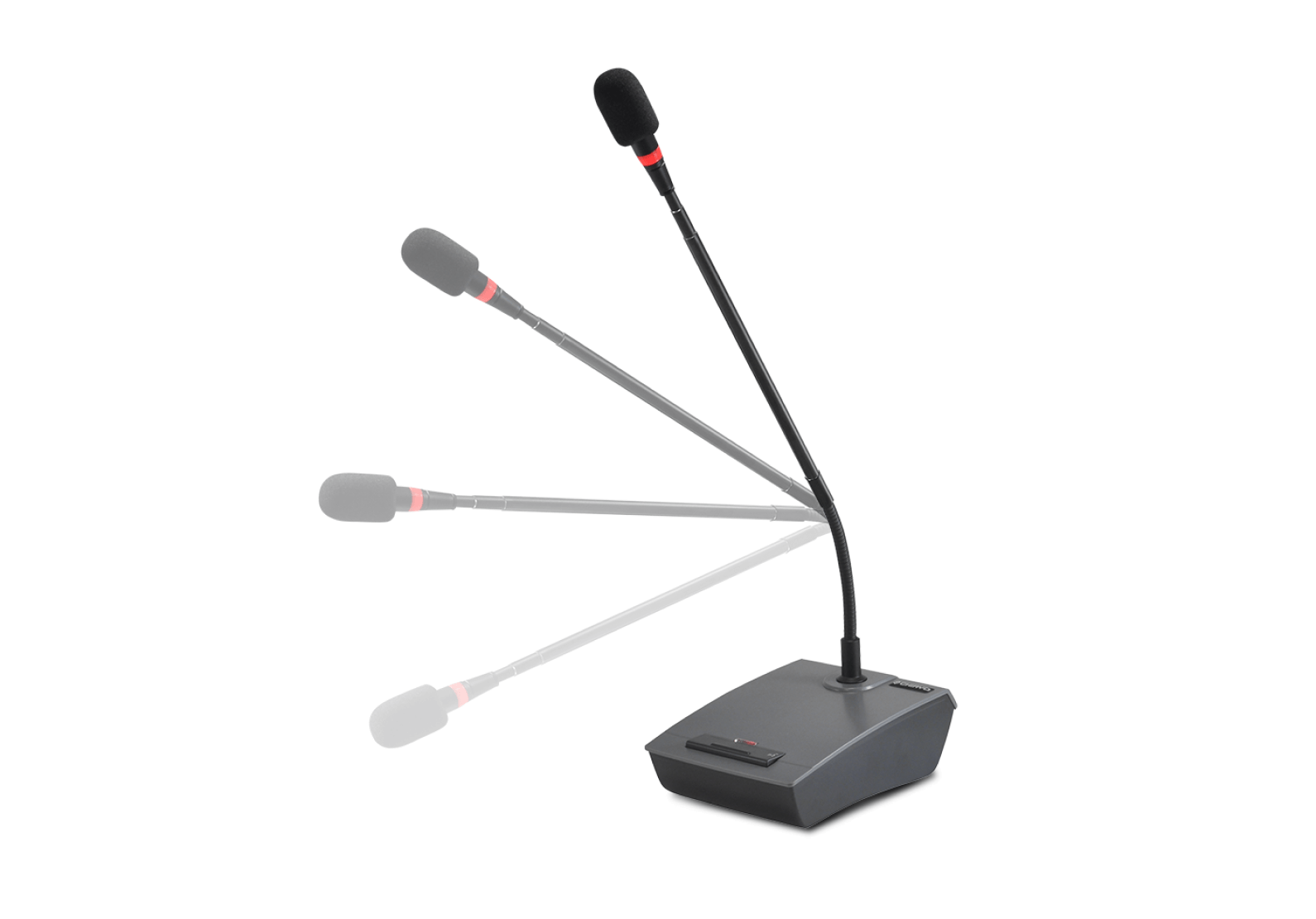

Three-Stage Telescopic Gooseneck Design

The GM-243S features a three-stage telescopic gooseneck design. The flexible gooseneck tube can be adjusted to any suitable angle, while the telescopic hard tube can be extended to the appropriate speaking distance without moving the microphone base, ensuring the best user experience and sound quality.

GM-243S

Specification

Model GM-243S
Microphone type Uni-directional condenser
Impedance 680Ω
Max input SPL 100dB for 1% T.H.D
Frequency response 80Hz – 16KHz
Sensitivity -50dB±3dB
S/N ratio ≧ 60dB
T.H.D. < 0.5%
Audio input RJ45 x1
Audio output RJ45 x1
Power supply 15V / 4.3A
Dimensions (mm) 110 x 162 x 479
Weight (g) 734

Downloads

Conference System GM-243C/S Flyer
